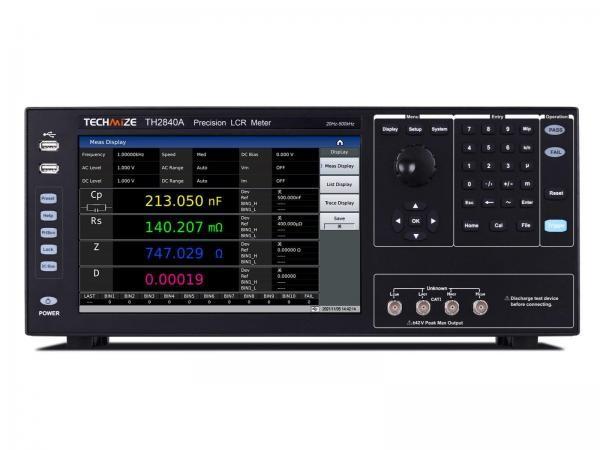

TH2840A Benchtop Type LCR Meter: 20Hz-2MHz, 14 Range Configs, High Stab & Consistency
-
Connectivity Options: Many LCR Meters come with connectivity options such as USB, GPIB, or LAN interfaces. These interfaces allow for data transfer, remote control, and integration with other test systems, enhancing the overall versatility and usability of the instrument.
-
Calibration Capabilities: The LCR Meter often includes built-in calibration functions, enabling users to calibrate the instrument periodically for accurate and reliable measurements. This ensures the long-term performance and stability of the device.
Features
Test frequency: 20Hz-2MHz
High stability and consistency: 14 range configurations
High power: signal level: 20VAC/100mAAC
Built-in DC bias40VDC/100mADC
Built-in current source2A
DCR level: 20VDC/100mADC
High speed: dual CPU architecture, measurement speed up to 1000 times/s
High resolution: 10.1 inches, resolution 1280*800, capacitive touch screen
Three test methods: point test, list scan, and graph scan
Four-parameter measurement
201 point multi-parameter list scanning function
Graphic scanning function, 4 trajectories can be selected arbitrarily, support 1/2/4 split screen
Sorting function: 10 levels of sorting in LCR mode
High compatibility: support SCPI/MODBUS instruction set, compatible with KEYSIGHT E4980A, E4980AL, HP4284A
Specifications
| Model |
TH2840A |
TH2840B |
| Display |
Display |
10.1"Touch Screen |
| Ratio |
16:09 |
| Resolution |
1280×RGB×800 |
| Parameter |
Test Mode |
Four Parameter Selectable |
| AC |
Cp/Cs, Lp/Ls, Rp/Rs, |Z|, |Y|, R, X, G, B, , D, Q, VAC, IAC |
| DC |
|
