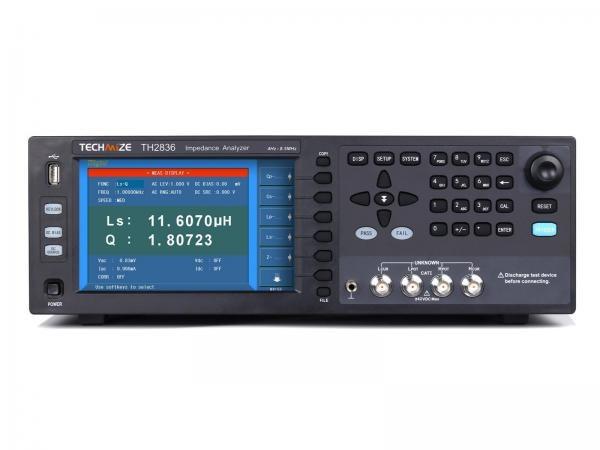

Component Parameter Tester TH2836 Benchtop Type LCR Meter with Math Operation, Screenshot & Recording Function
-
Portable and Benchtop Models: The LCR Meter is available in both portable and benchtop models, catering to different usage scenarios. Portable models offer convenience for field measurements, while benchtop models provide enhanced stability and additional features for laboratory applications.
-
Component Sorting: Some LCR Meters offer component sorting capabilities, allowing users to quickly sort and classify components based on their measured parameters. This feature is particularly useful in production or quality control environments.
Features
High precision: using automatic balancing bridge technology, four-terminal pair test configuration
High speed: the fastest test speed is 5.6ms
High resolution: 7 inches, 800×480 resolution
10-point multi-parameter list sweep function
Mathematical operation function
Automatic polarity function of varactor diode
One-key screenshot function
One key recording function
10-level sorting function, sound and light alarm for sorting results
Large storage space:
Built-in: 40 sets of setting files
Expansion: 500 sets of setting files, image files, and data recording files can be stored through USB memory
High compatibility: support SCPI commands, compatible with KEYSIGHTE4980A, E4980AL, HP4284A
Application
Passive components:
Capacitors, Inductors, Magnetic Cores, Resistors, Piezoelectric Devices, Transformers, Chipsets
Impedance parameter evaluation and performance analysis of hardware and network components, etc.
Semiconductor components:
Test and analysis of parasitic parameters of LED drive integrated circuits; C-V DC characteristics of varactor diodes; analysis of parasitic parameters of transistors or integrated circuits
Other components:
Impedance evaluation of printed circuit boards, relays, switches, cables, batteries, etc.
Dielectric material:
Dielectric constant and loss angle evaluation of plastics, ceramics and other materials
Magnetic material:
Permeability and loss angle evaluation of ferrite, amorphous and other magnetic materials
Semiconductor materials:
Dielectric constant, conductivity and C-V characteristics of semiconductor materials
LCD unit:
C-V characteristics such as dielectric constant and elastic constant
Specifications
| Model |
TH2836 |
| Display |
7 inch TFT LCD Display 800×RGB×480 |
| AC Parameters |
Cp/Cs, Lp/Ls, Rp/Rs, |Z|, |Y|, R, X, G, B, , D, Q, Vac, Iac |
| DC Parameters |
Rdc, Vdc, Idc |
| Test Frequency |
Range |
4Hz-8.5MHz |
| Resolution |
1mHz |
| Test Electric Level |
AC Voltage |
4Hz-1MHz:5mV-2Vrms |
| 1MHz-8.5MHz:5mV-1Vrms |
| Resolution |
100V |
| AC Current |
4Hz-2MHz:50A-20mArms |
| 2MHz-8.5MHz:50A-10mArms |
| Resolution |
1A |
| DC Voltage |
100mV-2V |
| Resolution |
100V |
| DC Bias |
Voltage |
0V-±10V |
| Resolution |
100V |
| Current |
0mA-±100mA |
| Resolution |
1A |
| Test terminal configuration |
Four-terminal pair |
| Cable Length |
0m, 1m |
| Output Impedance |
100 |
| Typical Measurement Time (speed) |
Fast: 5.6ms, Medium: 120ms, Slow: 230ms |
| Highest accuracy |
1kHz: 0.05% |
| 1MHz: 0.05% |
| 2MHz: 0.1% |
| 5MHz: 0.5% |
| 8.5MHz: 1.0% |
| Displany Range |
a: 10 to the negative 18th power
E: 10 to the 18th power |
| Cs, Cp |
1.00000aF-999.999EF |
| Ls, Lp |
1.000000aH-999.999EH |
| D |
0.00001-9.99999 |
