Motor Winding Analyzer Test Waveform Comparison 40MSPS Sampling Rate

Accuracy : ±2%

Data Storage : 1000 Groups

Dimension : 400mm*300mm*150mm

Display : LCD

Interface : USB/RS232

Power Supply : AC220V/50Hz

Product Name : Impluse Winding Tester

Test Current : 0-10A

Test Frequency : 20Hz-1KHz

Test Mode : Single/Continuous

Test Range : 0.1-100mH

Test Voltage : 0-100V

Test Waveform : Sine Wave

Weight : 5Kg

Contact Now

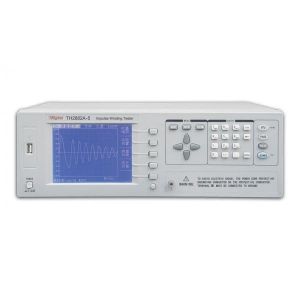

TH2882A-5 Series Impulse Winding Tester: Waveform Comparison & 40MSPS Sampling Rate

Robust Construction: Winding Testers are built with robustness in mind, featuring durable enclosures and reliable internal components. This ensures their longevity and resistance to environmental factors.
Versatile Connectivity: Winding Testers offer versatile connectivity options, including USB, Ethernet, and wireless interfaces. This facilitates data transfer, remote control, and integration with other test equipment or software platforms.
Comprehensive Test Reports: After completing the testing process, Winding Testers generate comprehensive test reports that include all relevant measurement data and analysis results. These reports serve as documentation for quality assurance and compliance purposes.

TH2882A-5 Series

manual,datasheet

--------------------------------------------------------------------------------------------------------------

Features

Low inductance impulse test: down to 10H

Low energy test without damaging the coil

Fast detection of winding insulation at a speed of 5.5meas/sec

4 kinds of waveform comparison methods

Up to 40 MSPS sampling rate

320×240 dot-matrix graphic LCD display

Chinese and English operation languages

Fridndly user's interface and easy operation

Multi-trigger mode programmable

Voltage, Time and Frequency measuring function

Direct display of comparison result

Keyboard lock and password protection function

Handler, RS-232C, and GPIB(optional) interfaces

500 groups of waveforms can be stored in USB disk(optional)

Multi-channel scan control interface: SCANNER (optional)

Brief Introduction

Due to the influence of coil wire material,magnetic material,framework and manufacture technics etc ., coil products (such as transformers, motors, etc.) may have defects of low insulation between coil layers,circles and leads. TH2882A series impulse winding tester,adopting highspeed sampling technique, is a new generation analysis test instrument for insulation performace of coil products.

--------------------------------------------------------------------------------------------------------------
